Generate Terrain

There are several classes that help to generate a random terrain so the user does not have to create the matrix manually.

The class Generator has a function generate_random_terrain that create an object of type Terrain (or DestinationSetTerrain if set). These are the arguments for such function (some arguments are not used for different Generators):

  • n: int number of rows

  • m: int number of columns

  • min_height: int = 0 minimum height of the terrain

  • max_height: int = 99 maximum height of the terrain

  • min_step: int = 1 minimum step between two heights

  • abruptness: float = 0.2 0: smooth, 1: abrupt

  • seed: int = None seed for the random number generator

  • origin: Coordinate = None origin of the terrain

  • destination: Coordinate = None destination of the terrain

  • terrain_ctor: Terrain = Terrain whether to use Terrain``or ``DestinationSetTerrain

  • cost_function: callable = None cost function for the terrain (if None use default)

There exist different generators that create the random matrix from different criteria:

from sIArena.terrain.generator.FocusedGenerator import FocusedGenerator
from sIArena.terrain.generator.PerlinGenerator import PerlinGenerator
from sIArena.terrain.generator.MazeGenerator import MazeGenerator

In order to generate a terrain, the user must create a generator object and call the function generate_random_terrain:

generator = FocusedGenerator()
terrain = generator.generate_random_terrain(n=10, m=10)

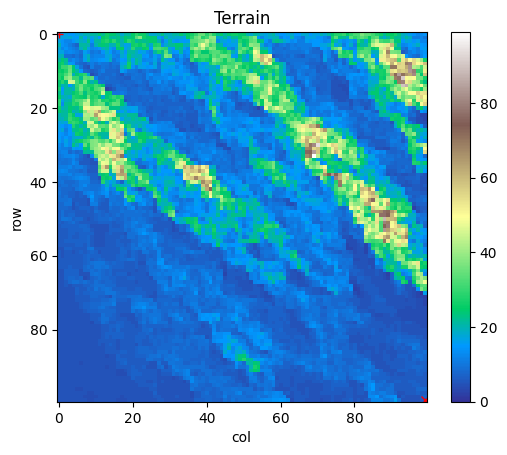

Focused Generator

This generator generates the map from top-left corner to bottom-right corner. It generates each cell depending on the contiguous cells and a distribution probability.

It tends to create very craggy and with diagonal mountains.

terrain = FocusedGenerator().generate_random_terrain(n=100, m=100, seed=0)
../../_images/focused100x100_0.png

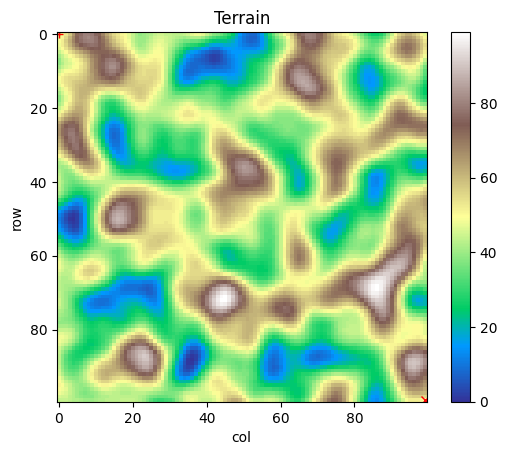

Perlin Generator

This generator uses perlin noise to generate the terrain.

It tends to create smooth terrains with some hills and valleys.

terrain = PerlinGenerator().generate_random_terrain(n=100, m=100, seed=0)
../../_images/perlin100x100_0.png

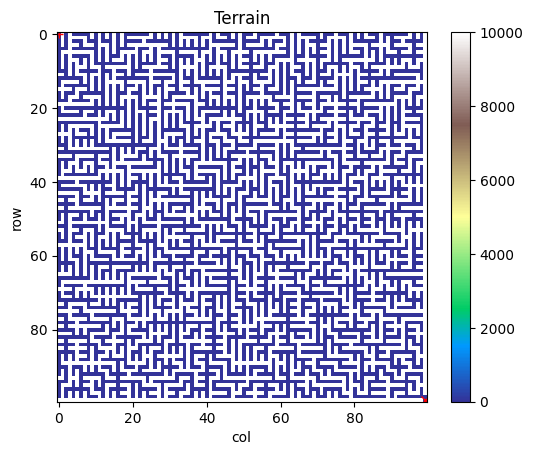

Maze Generator

This generator creates a maze. This is, it creates a terrain with 1 width valley and 1 width very high wall. The valley connects the whole map, so the terrain can be walked through without climbing any wall.

The origin and destination must be set afterwards. It is assured to connect every valley point, and the top-left corner and bottom-right corner are always in a valley.

terrain = MazeGenerator().generate_random_terrain(n=100, m=100, seed=0)
../../_images/maze100x100_0.png
